各種的工具

各種的工具

編入索引中各種的工具

	彎和直的鑷子

	Desoldering 抽水機 PS500

	可互換的鏡子

	鑰匙圈縮圖螺絲起子

	Mini 匙狀小竹板 & ESD 保險箱Mini 匙狀小竹板

	多刀鋒柄

	電子的裝配線的空氣的裁剪者

	小刀刀鋒

	小刀柄

	鐘錶匠的螺絲起子放置

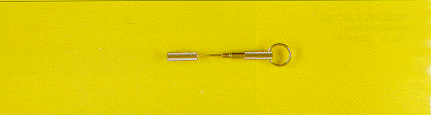

KEY RING MINIATURE SCREWDRIVER
鑰匙圈縮圖螺絲起子

Reference	Length
	mm	Inches
B1	45	1 7/8
Blade width	1.6	.063

WATCHMAKER'S SCREWDRIVER SET
鐘錶匠的螺絲起子放置

Reference	Length
	mm	Inches
B5
Blade widths	0.8	.030
	1.0	.039
	1.2	.050
	1.4	.055
	2.0	.078

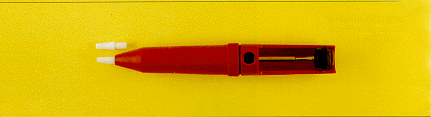

DESOLDERING PUMP PS500
抽水機

Reference

with 2 Teflon Tips

Replacement Tips for PS500

PS500/W = TEFLON (white)

PS500/B = ESD SAFE (black)

INTERCHANGEABLE MIRROR
可互換的鏡子

Reference	Length
	mm	Inches
M15 - Complete	150	6
M15-20 - Mirror only	?20	3/4
M15-0 - Handle only - shiny polished
M18 - Complete	180	7 1/2
M18-25 - Mirror only	?25	1
M18-0 - Handle only - shiny polished

　

　

　

　

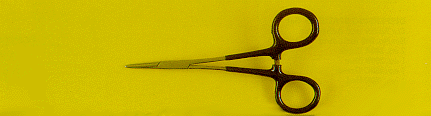

STRAIGHT FORCEPS
直鑷子

Reference	Length
	mm	Inches
F181	125	5
F182	150	6
Stainless Steel Plastic coated handles

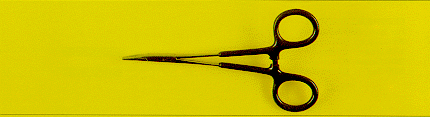

CURVED FORCEPS
彎鑷子

Reference	Length
	mm	Inches
F185	125	5
F186	150	6
Stainless Steel Plastic coated handles
Other forceps available upon request

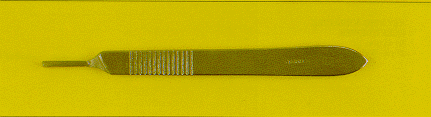

SCALPEL HANDLES
小刀柄

Reference	Length
	mm	Inches
N?3	120	4 3/4
Stainless Steel

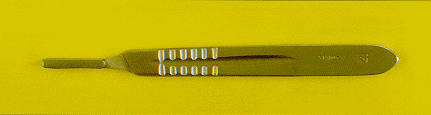

SCALPEL HANDLES
小刀柄

Reference	Length
	mm	Inches
N?4	135	5 1/4
Stainless Steel

MULTI-BLADE HANDLE PATENDED
多刀鋒柄 PATENDED

Reference
Multi 34-SA-ESD
Stainless Anti-Magnetic Steel "One handle only for any blade"

GUARDLOCK 34
Safety Guardlock for MULTI 34-SA-ESD Totally safe, locked, with pocket clip

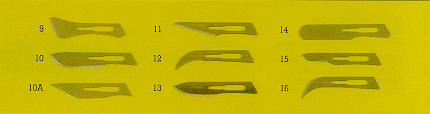

SCALPEL BLADES
小刀刀鋒

Reference

9, 10, 10A, 11, 12, 13, 14, 15, 16

For handle N?3

SCALPEL BLADES
小刀刀鋒

Reference

18, 19, 20, 21, 22, 23, 24, 36

For handle N?4

MISCELLANEOUS TOOLS
SIPEL PNEUMATIC CUTTER for Electronics Assembly Lines

	Precision
	Lightweight

	Ergonomic
	Speeds up production

PNEUMATIC CUTTER 空氣的裁剪者


Cutting Heads for Pneumatic Cutter SIPAIR 2000 切斷頭為空氣的裁剪者
1595-P	1597-P	1582-P

Medium Tapered Head. Cuts 20 AWG or Smaller Soft Wire Total Flush Cut	Medium Oval Head. Cuts 18 AWG or Smaller Soft Wire Mid-Flush Cut	45° Angle Cuts 22 AWG or Smaller Soft Wire. Also .010" to .030" Nickel Ribbon. Total Flush Cut

1530-P	1549-P	1530D-P

Anti-Shock Shear Cut. Standard Cut-Off is .040 Other Cut-Offs available upon request	45° Shear Cutter right-handed Standard Cut-Off is .040 Left-handed model available	Cuts and Swages Lead. Standard Cut-Off is .040

MINI SPATULAS & ESD SAFE MINI SPATULAS

Wide variety of applications for all types of electronic assembly:

	Apply Epoxy and Fluxes
	Touch-up solder pastes
	Used as oilers
	Other applications, call for details

TIP: Heat Treated Steel - 60HRC
Easy Grip Hex Shape Handle

MS025 / MS025-ESD

Reference	Reference
MS025	MS025-ESD
Handle: Black	Handle: Black, Black dot
White Cap	Black ESD Cap
Tip size: 0.25 mm / .010"
Tip Length: 13 mm / 1/2"
Overall Length: 63.5 mm / 2 1/2"

MS038 / MS038-ESD

Reference	Reference
MS038	MS038-ESD
Handle: Blue	Handle: Black, Blue dot
White Cap	Black ESD Cap
Tip size: 0.38 mm / .015"
Tip Length: 13 mm / 1/2"
Overall Length: 63.5 mm / 2 1/2"

MS050 / MS050-ESD

Reference	Reference
MS050	MS050-ESD
Handle: Green	Handle: Black, Green dot
White Cap	Black ESD Cap
Tip size: 0.50 mm / .020"
Tip Length: 13 mm / 1/2"
Overall Length: 63.5 mm / 2 1/2"

MS063 / MS063-ESD

Reference	Reference
MS063	MS063-ESD
Handle: Red	Handle: Black, Red dot
White Cap	Black ESD Cap
Tip size: 0.63 mm / .025"
Tip Length: 13 mm / 1/2"
Overall Length: 63.5 mm / 2 1/2"

MS Set / MS Set-ESD

Reference	Reference
5 Piece Set	5 Piece Set, Black Handle
MS5	MS5-ESD
2 ea. MS025 Black	2 ea. MS025-ESD Black dot
1 ea. MS038 Blue	1 ea. MS038-ESD Blue dot
1 ea. MS050 Green	1 ea. MS050-ESD Green dot
1 ea. MS063 Red	1 ea. MS063-ESD Red dot
White Caps	Black ESD Caps
